WudsignPrelam

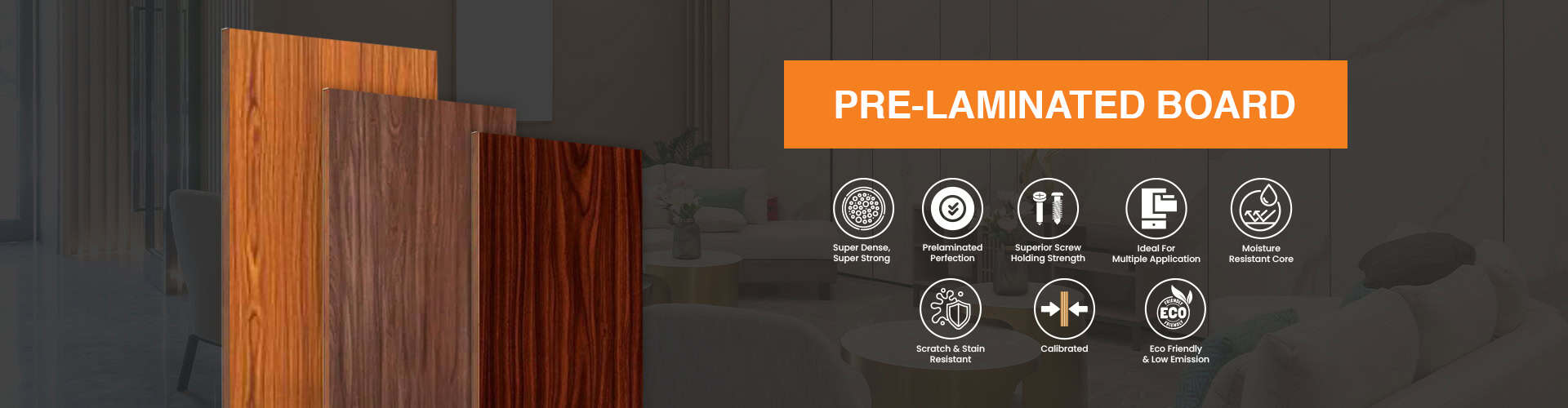

Wudsign Prelaminated MDF is designed to meet the highest standards of quality, durability, and aesthetics. Our prelam boards are manufactured using advanced technology, ensuring a consistent surface finish, superior structural integrity, and long-lasting performance. With a diverse range of 58 design options, including Marble, Wooden, Solid Colors, and Fabric textures, WudsignPrelam offers an ideal solution for interior applications across residential, commercial, and institutional spaces.
Premium Surface Finishes
WudsignPrelam is available in two distinct finishes, catering to different design preferences and functional requirements:
Comprehensive Design Range
WudsignPrelam Boards are available on different high-performance substrates:
| Core Type | Grade | Key Features |
|---|---|---|
| MDF | Plain / Exterior Grade | Smooth surface, good machinability |
| HDF | High-Density | Higher screw-holding strength, impact resistance |
| SDSMR | Super-Dense Single Moisture Resistance | Excellent moisture & dimensional stability |
2. Lamination & Surface
| Feature | Specification |
|---|---|
| Surface Type | Pre-laminated melamine-impregnated décor paper |
| Finish Options | Matte, Suede, Gloss, Textured |
| Abrasion Resistance | ≥ 300 revolutions (IS 12823 compliant) |
| Color Stability | UV stabilized, fade-resistant |
| Edge Banding Compatibility | Yes (PVC/ABS/PMMA) |
3. Dimensions
| Parameter | Size (mm) |
|---|---|
| Thickness Options | 7mm, 8mm, 11mm, 12mm, 17mm, 18mm, 25mm |
| Standard Board Size | 2440 mm x 1220 mm (8x4 ft) |
| Custom Sizes | Available on request |
4. Mechanical Properties (Typical Values)
| Property | MDF | HDF | SDSMR |
|---|---|---|---|
| Density (kg/m³) | 700–750 | 800–850 | 850–900 |
| Bending Strength (N/mm²) | ≥ 30 | ≥ 40 | ≥ 45 |
| Internal Bond Strength | ≥ 0.60 | ≥ 0.70 | ≥ 0.75 |
| Screw Holding (Face) | ≥ 900 N | ≥ 1100 N | ≥ 1200 N |
| Screw Holding (Edge) | ≥ 600 N | ≥ 800 N | ≥ 1000 N |
| Moisture Resistance (24 hrs soak) | ≤ 10% thickness swell (SDSMR) | - | - |
WudsignPrelam boards are pre-laminated MDF/HDF/SDSMR boards designed for both residential and commercial interiors. Here are their key application areas:
